Configuration guide

Set up Planning Center for background checks

Four pieces of configuration in Planning Center People, after which your team starts a background check the same way it moves anyone through a workflow.

About 30 minutesNo developer requiredNo API keys to manage

Who does what

You configure Planning Center. PSBI handles the connection, the mapping, and the testing. Nothing on this page requires a developer.

Your Planning Center administrator

  • Create the Compliance custom fields
  • Create the Background Check workflow and its two steps
  • Approve the PSBI authorization link
  • Create the workflow event subscription

PSBI

  • Register the connection for your organization
  • Read your workflows, steps, and field IDs
  • Map each role to the right screening package
  • Test the connection and review a dry run with you

Before you begin

Before you begin, you’ll need:

  • A Planning Center administrator who can manage People workflows, custom fields, and integrations.
  • The list of roles you screen differently, and any add-on requirements such as driving or working with minors. This list should be shared with your PSBI onboarding specialist to configure the role mapping.
  • Confirmation that everyone you intend to screen has a first name, last name, and their own email address, and is not marked as a child.
  • A small group to launch with, rather than your whole volunteer roster on day one.
01

Create the Compliance custom fields

Two fields on a custom tab tell PSBI which screening package a person needs. Everything else is derived from them.

  1. 1In Planning Center People, open Overview → Configuration → Custom fields. Select Add tab and name it Compliance.
  2. 2Add a field named Role with type Dropdown, then add one option per group you screen differently — for example Volunteer and Church Staff.
  3. 3Add a second field named Optional Tags with type Checkboxes, and add an option for each add-on requirement — for example Driver and Works with Minors.

Field names are yours to choose. PSBI stores the underlying field IDs, so renaming a field later will not break the connection — but adding or renaming an option does need to be shared with us, because options are matched by their value.

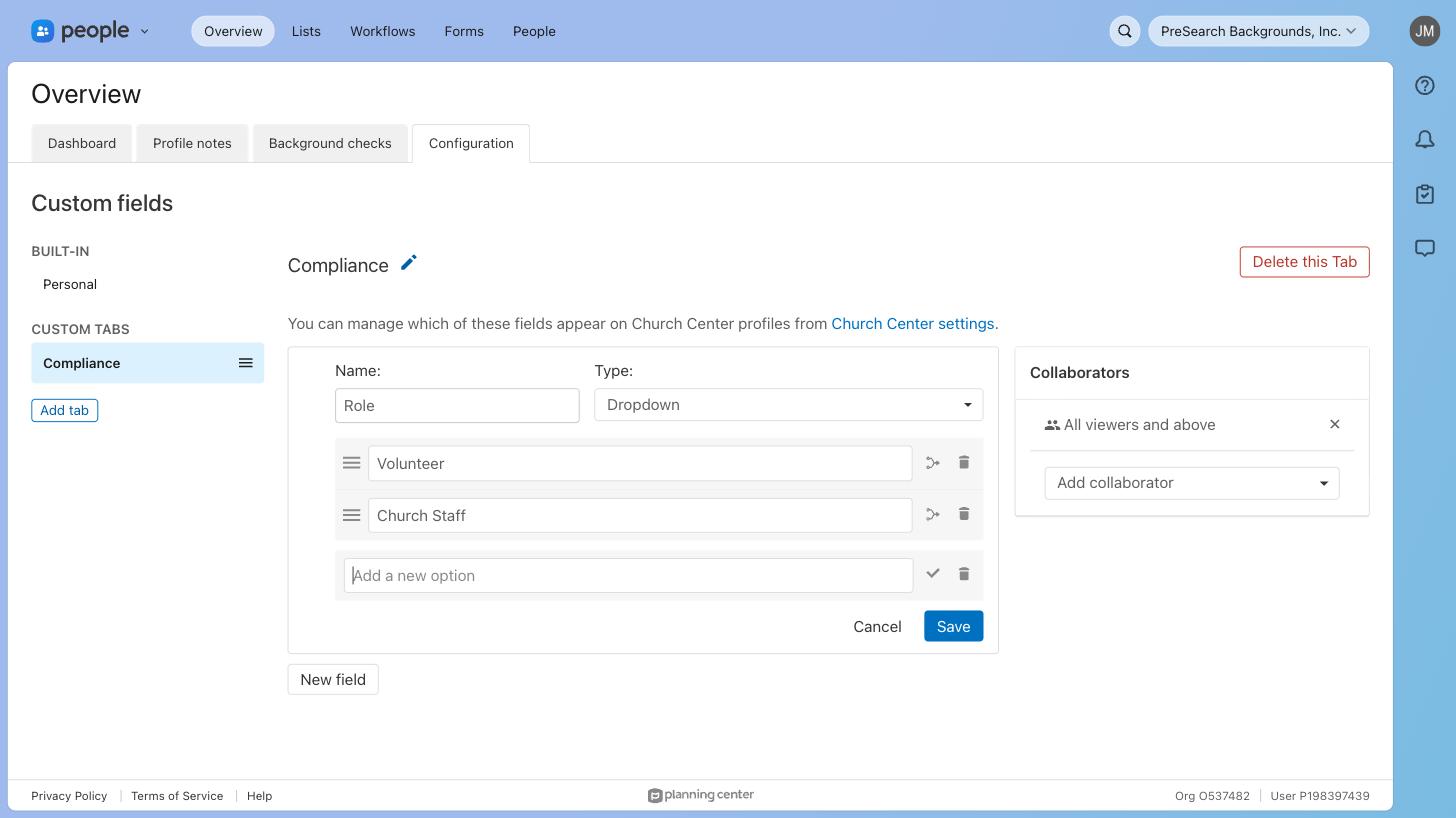

Creating the Role field as a dropdown with Volunteer and Church Staff options
Role is a dropdown. Each option becomes a screening package.

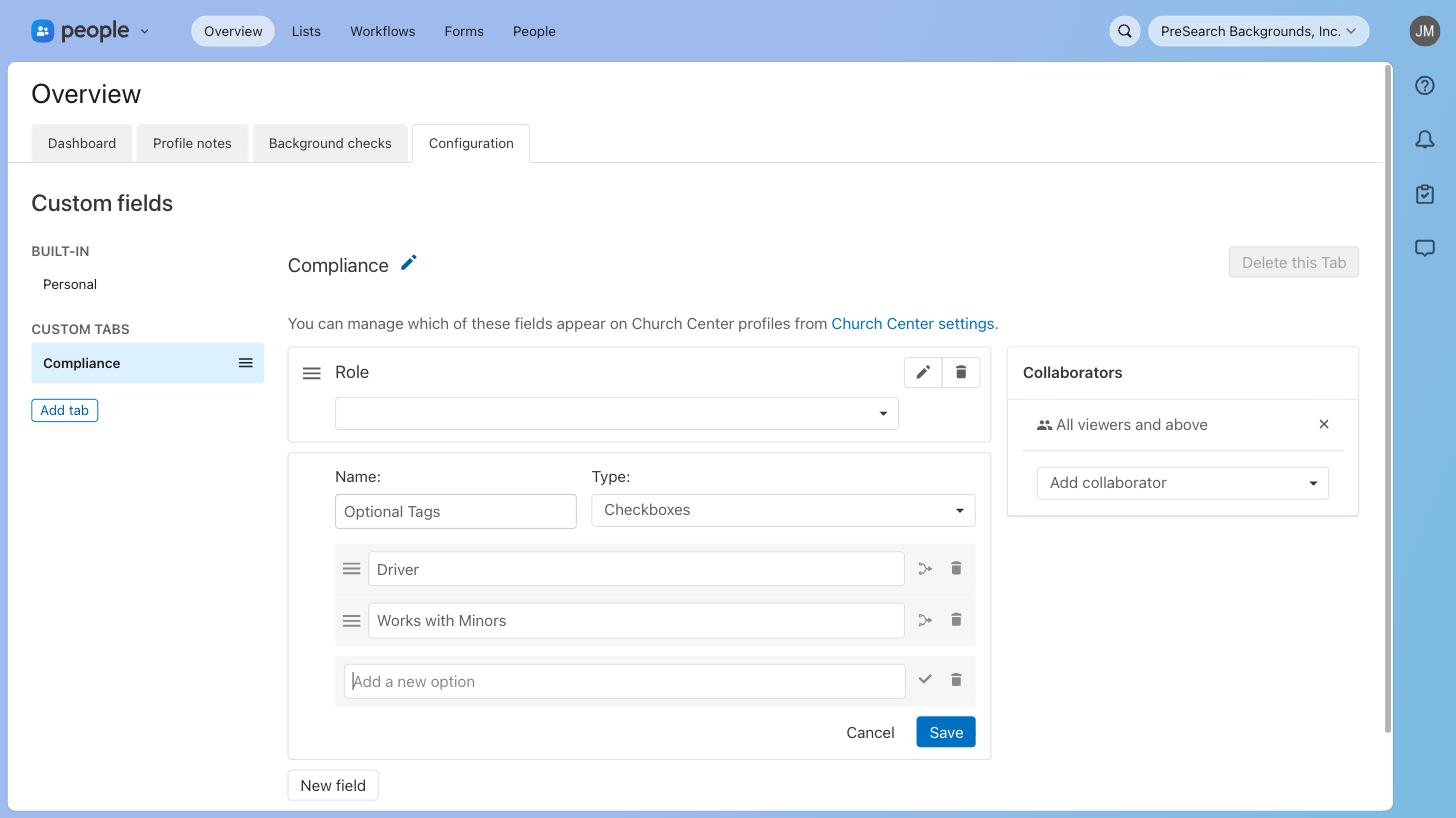

Creating the Optional Tags field as checkboxes with Driver and Works with Minors options
Optional Tags is checkboxes, so a person can carry more than one.

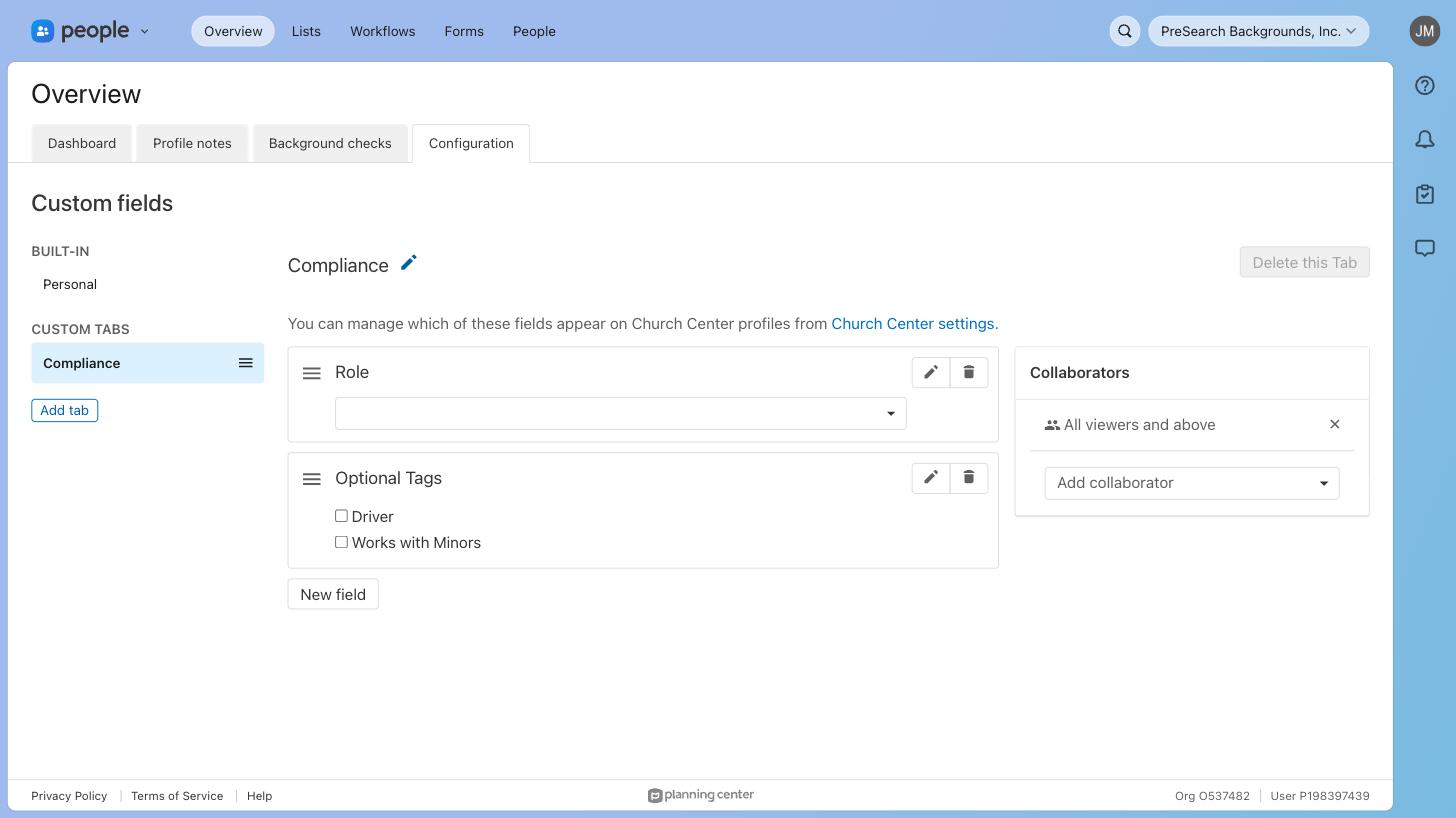

The finished Compliance tab showing the Role and Optional Tags fields
The finished tab. This is what you should end up with.
02

Create the Background Check workflow

A simple two-step Background Check workflow lets the person who oversees screening choose each person’s role and requirements, then deliberately submit the request.

  1. 1Open Workflows and select New workflow. Name it Background Check.
  2. 2Add a first step named Select Role and Tags. Add the description: Choose the person’s screening role and any additional requirements, then complete this step. This makes the requirements clear to your team.
  3. 3Assign Select Role and Tags to the person who oversees screening.
  4. 4Add a second step named Check Submitted. A card arriving here starts the check.

Use one deliberate step as the trigger. Because enrollment is driven by a card arriving on a named step, ordinary edits elsewhere in Planning Center cannot start a background check by accident.

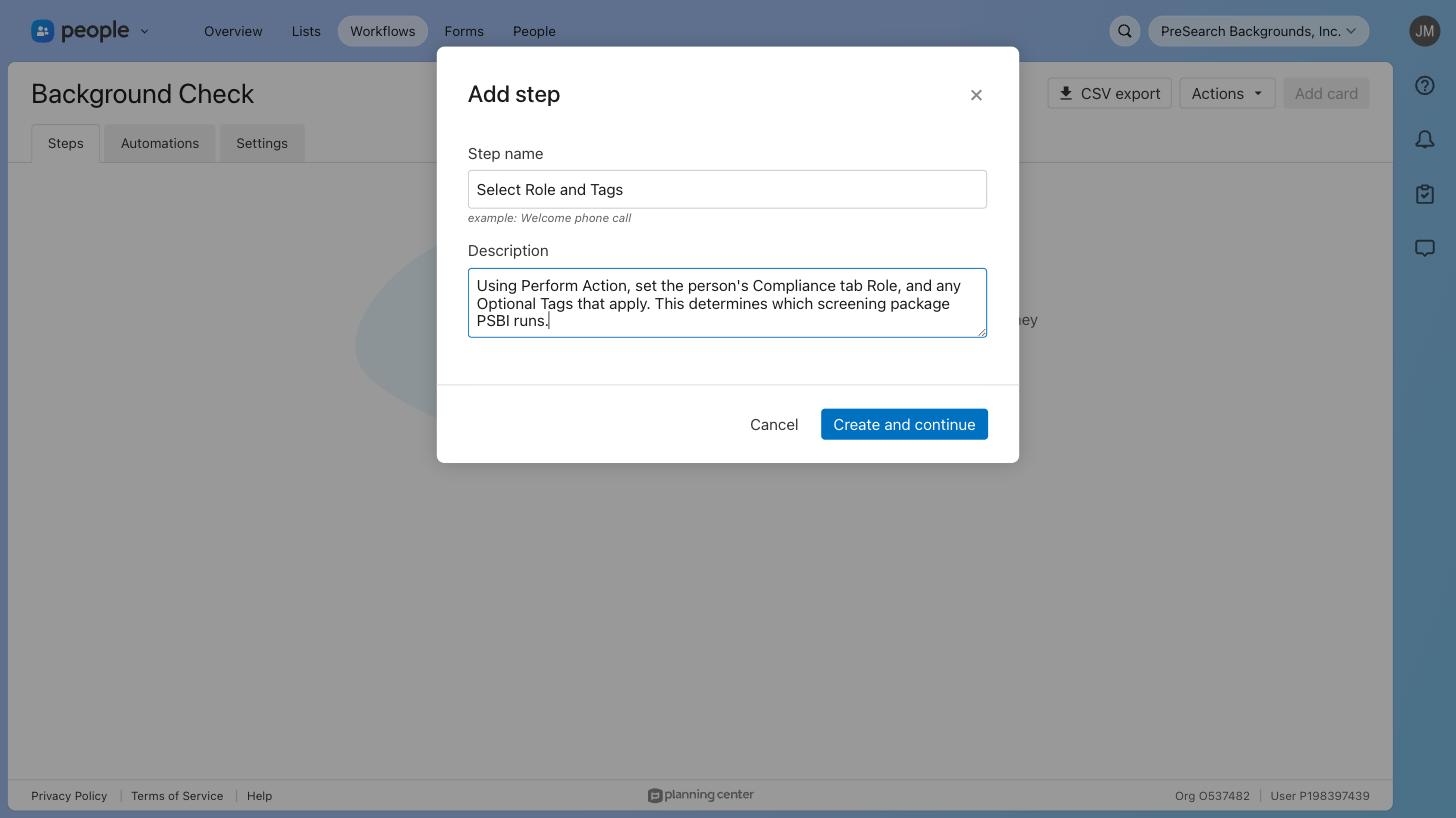

Adding the Select Role and Tags step with its description
Step one. The description is what your team reads on the card.

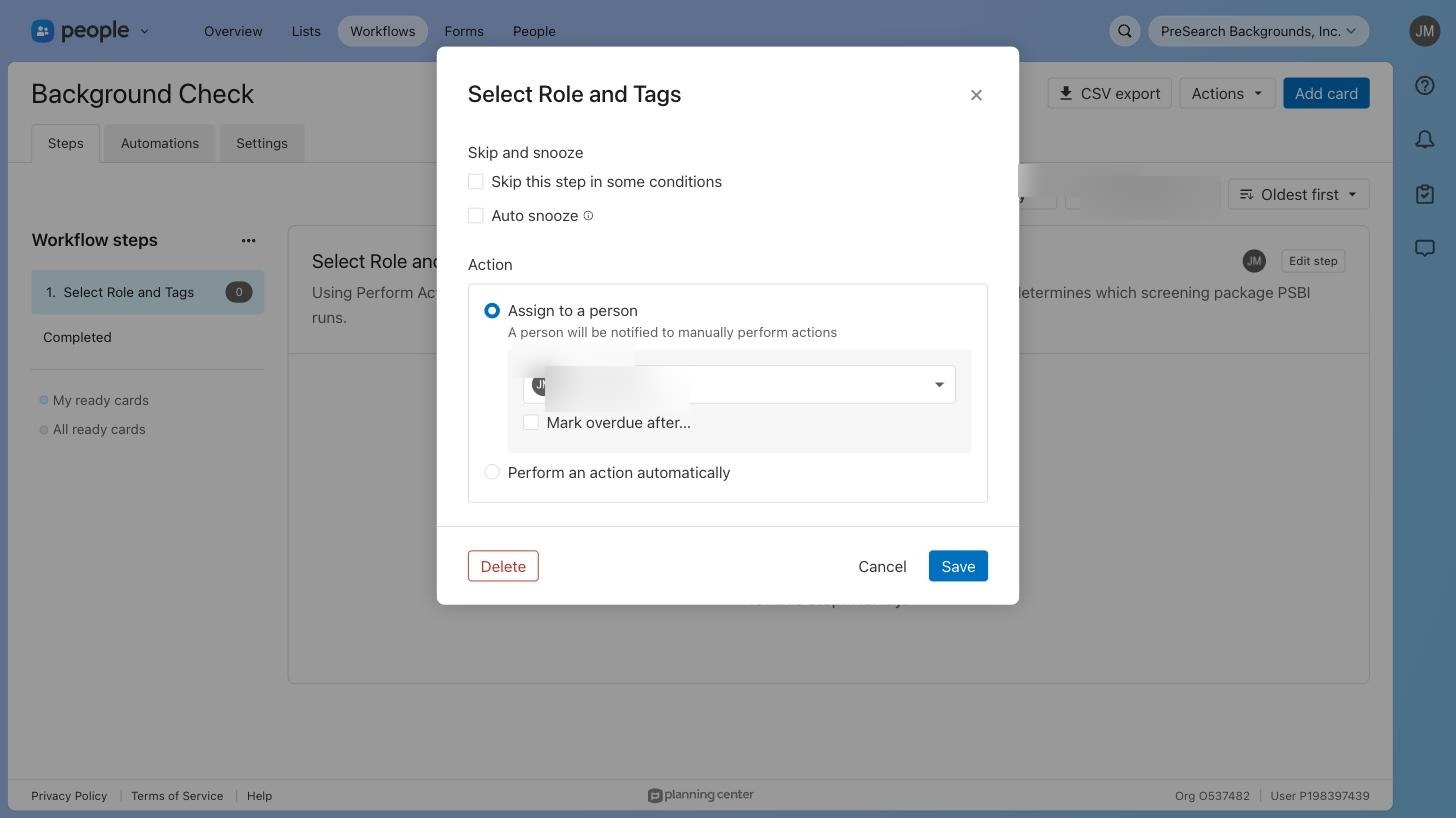

Step settings showing assignment to a person
Assign the step to whoever owns screening.

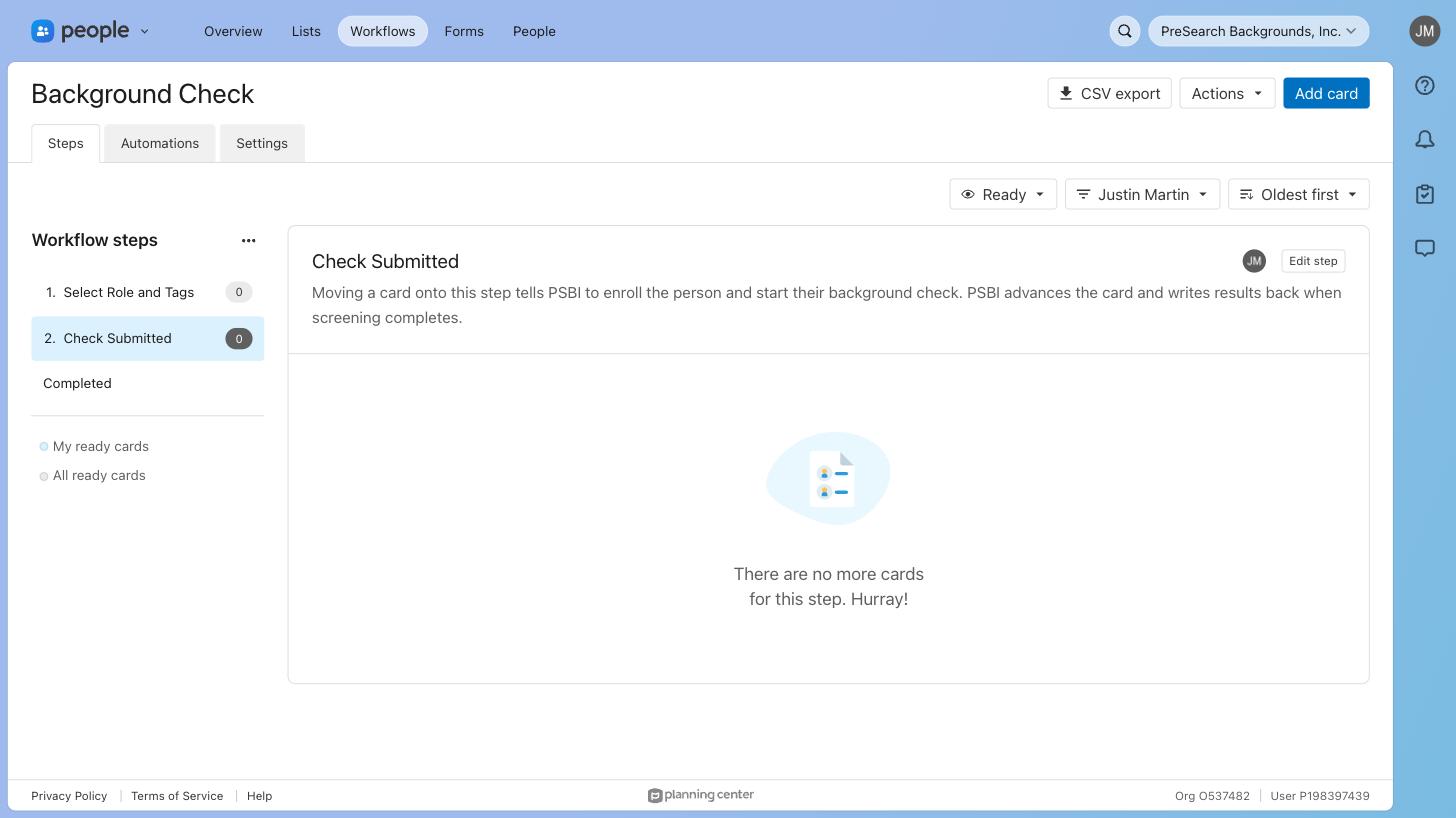

The finished Background Check workflow showing both steps
Both steps in place. Check Submitted is the trigger.
03

Authorize PSBI

You do not create an application or manage API keys. PSBI sends you one link to approve.

  1. 1Your implementation lead sends you an authorization link. Open it while signed in to the Planning Center account that administers your People workflows.
  2. 2Review the request. PSBI asks for access to People only, and the screen names your organization so you can confirm you are approving the right one.
  3. 3Select Allow. You are returned to a confirmation page, and access is now tied to your organization and revocable by you at any time.

The link carries a short-lived security code and should be opened promptly. If it expires, ask for a fresh one — the same link cannot be reused.

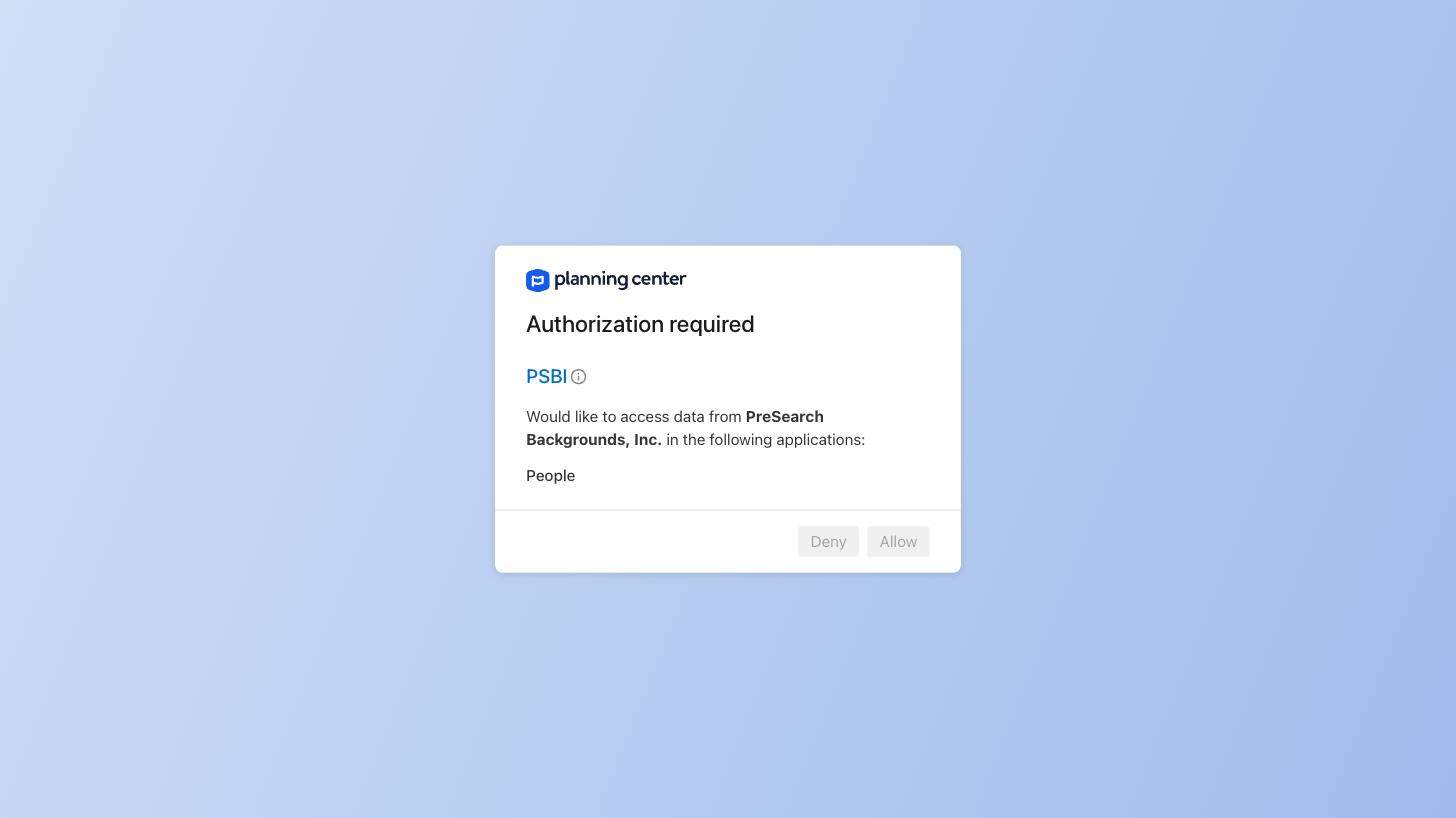

The Planning Center authorization screen requesting People access for PSBI
The approval screen. People access only, scoped to your organization.
04

Create the event subscription

One subscription tells Planning Center to notify PSBI when a card reaches the trigger step.

  1. 1Open the Planning Center Developer area and go to Webhooks. Select Add.
  2. 2For Endpoint URL, enter this shared PSBI address. It is the same for every Planning Center organization; your organization-specific connection is established separately when you authorize PSBI:
    https://app.psbi.com/api/v1/partners/planning-center/webhook
  3. 3Under people, find the Workflow card row and tick step_ready only. Leave every other event unticked, then save.

Subscribe to step_ready alone. Planning Center emits several events as a card changes, and subscribing to more of them produces duplicate work without changing the outcome.

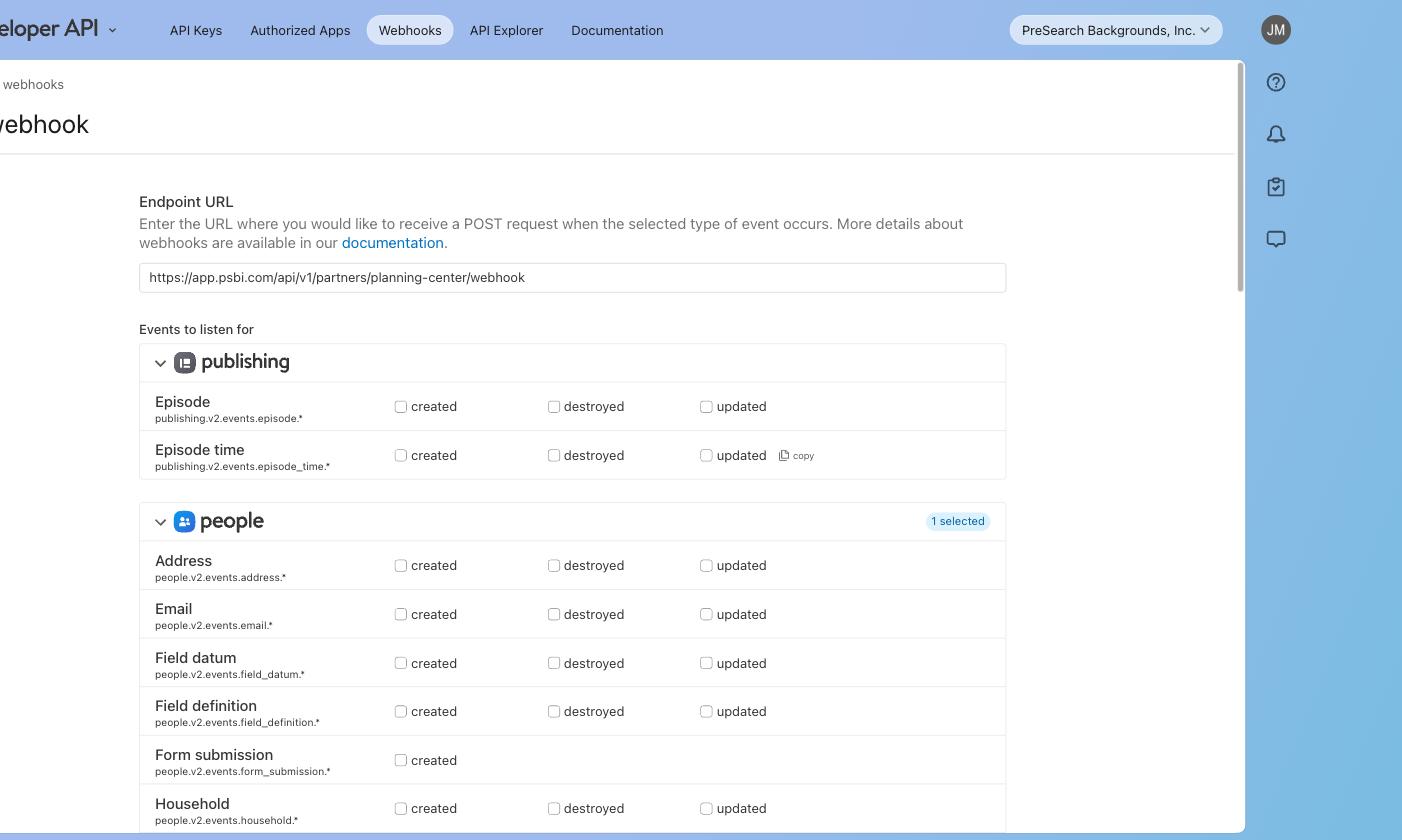

The Add webhook form with the PSBI endpoint URL entered
The shared PSBI endpoint. Your organization is connected separately when you authorize PSBI.

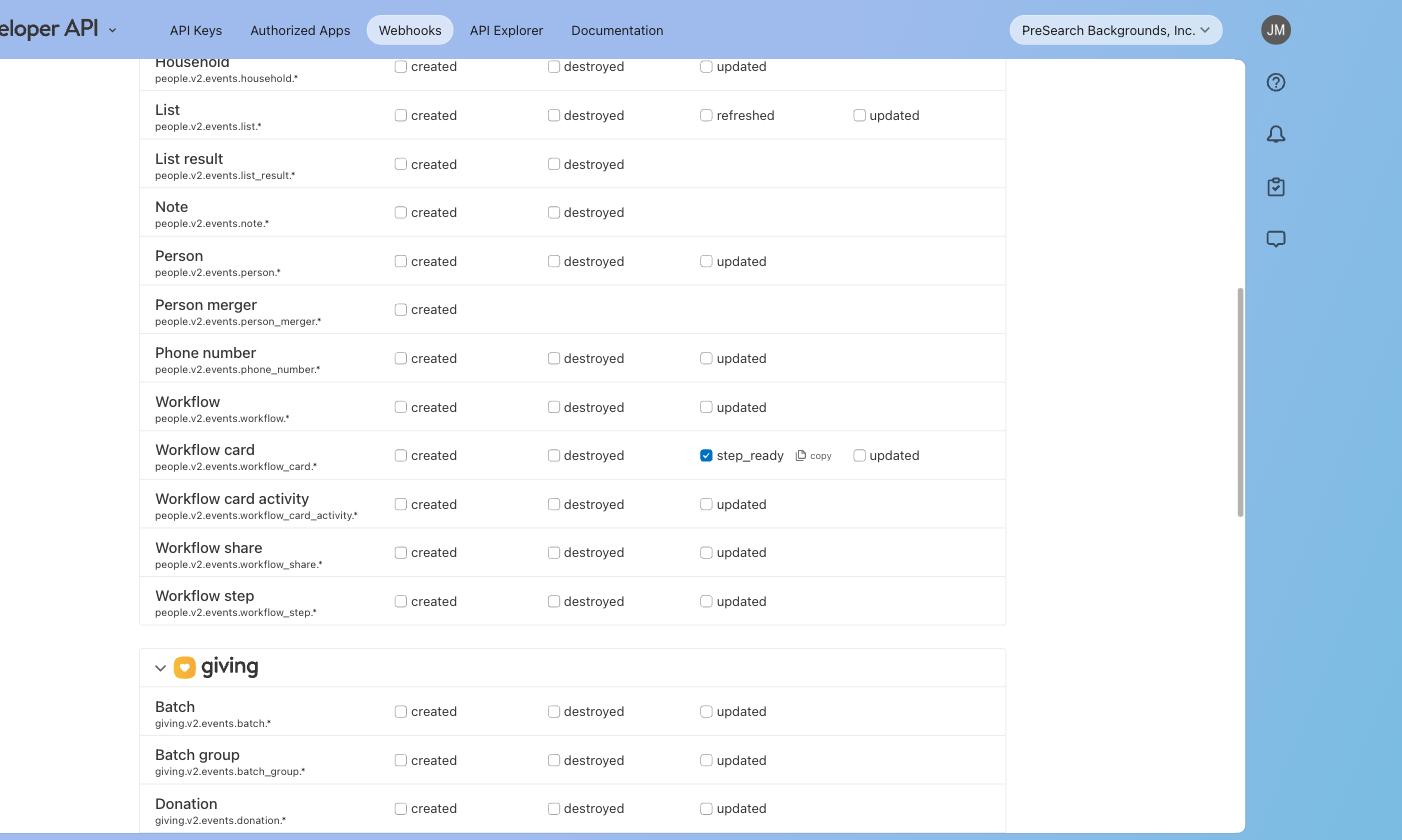

The Workflow card event row with step_ready ticked
Workflow card → step_ready. Nothing else.

Validate before you launch

PSBI runs a test with you before the connection is live. Use test people rather than starting with your full roster, and confirm each of these together:

  • A test person reaches the trigger step and appears in PSBI within moments.
  • The role you set selects the screening package you expected.
  • An optional tag adds the extra requirement it should — a driver picks up a motor vehicle record.
  • Status appears on the person’s Planning Center record and updates as screening progresses.
  • Moving the same card twice does not enroll the person twice.

Treat the connection as live only once your implementation lead confirms the result with you.

What it looks like once it is running

Your team adds a person to the workflow, sets their role, and completes the step. Everything after that happens on its own — the person is invited, completes their own information and consent, and the result appears on their Planning Center record.

See the full walkthrough

Troubleshooting

I cannot find Webhooks in Planning Center

Webhook subscriptions live in the Developer area and are created under a specific user account. Sign in as an administrator who can manage integrations for the organization. If the option is still unavailable, contact Planning Center support.

A person reached the step but nothing happened in PSBI

Check three things in order: the card is on the exact step agreed during setup, the person has a first name, last name, and their own email address, and the person is not marked as a child. Send us the person’s Planning Center record identifier and we will trace the event.

The wrong screening package was selected

Compare the person’s Role value against the mapping agreed during setup. Option values are matched exactly, so a renamed or newly added option needs to be shared with us before it is used.

We added a new role or ministry

Tell us before anyone is moved into the workflow under it. An unmapped role does not silently pick a sensible default, and we would rather add the mapping than sort out a person screened under the wrong package.

Someone was screened before and no new record appeared

That is expected. A person who already has a background check record has that record updated rather than a second one created, so their history stays on one row.

Need a hand?

Contact your PSBI implementation lead with your Planning Center organization name, the workflow or role involved, and what you expected to happen.
